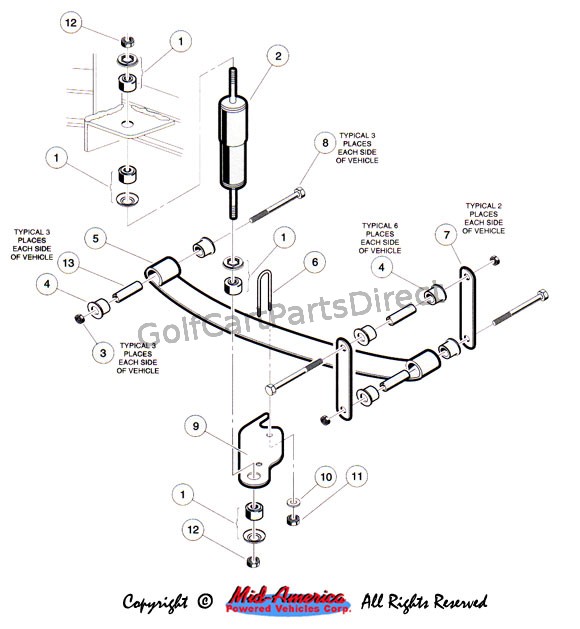

Rear Susp. Electric
ID Part No. Description Quantity Req Our Price
1 1011415 1011415 - SHOCK ABSORBER CUSHION KIT 4 $4.92 Each
2 102588501 102588501 - SHOCK ABSORBER REAR PRV SPD 2 $30.96 Each
3 8754 8754 - LOCKNUT- 3/8-16 HEX 6 $0.36 Each
4 1015583 1015583 - BUSHING- URETHANE 12 $1.30 Each
5 103629001 103629001 - SPRING ASM- REAR- DS 2 $49.08 Each
6 1012180 1012180 - U-BOLT 2 $1.80 Each
7 7569 7569 - SHACKLE PLATE 4 INCH 4 $4.92 Each
8 8755 8755 - SCREW- 3/8-16 X 3.375 HEX CAP 6 $1.56 Each
9 1012181 1012181 - BRACKET- SHOCK MOUNTING -RH 1 $11.52 Each
9 1012182 1012182 - BRACKET- SHOCK MOUNTING -LH 1 $11.04 Each
10 1014557 1014557 - WASHER- 7/16 FLAT 4 $0.30 Each
11 1014555 1014555 - LOCKNUT- 7/16-14 NYLON HEX 4 $0.30 Each
12 1010145 1010145 - NUT- 3/8-24 HEX 4 $0.30 Each
13 1012303 1012303 - BUSHING - STEEL 6 $1.18 Each
