Seat Back and Bag Hoop

Menu: Store Home | Advanced Search | Shopping Cart | Checkout

Location: Store Home > Engine - Part 3 > Battery – Gasoline Vehicle > Carburetor - FE290 > Governor and Intake Hose > Front Body > Motor - 36V > Engine - Part 6 > Seat Back and Bag Hoop

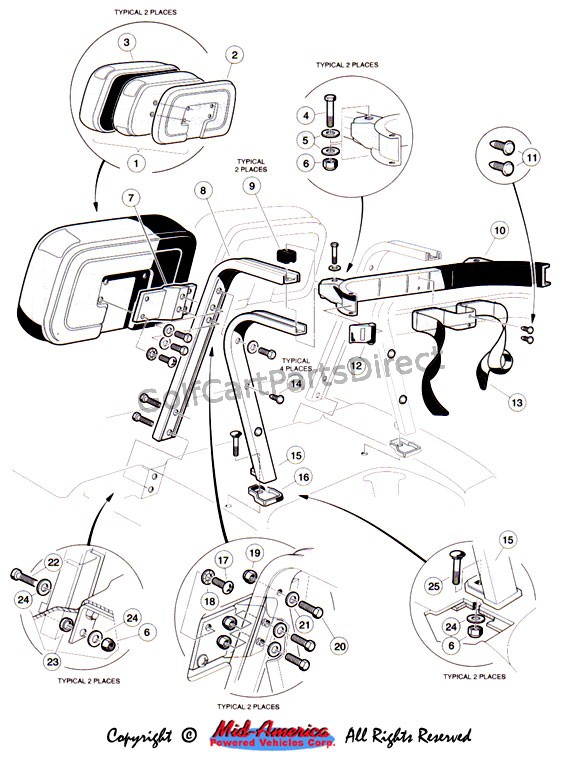

Seat Back and Bag Hoop
ID Part No. Description Quantity Req Our Price
1 101565102 101565102 - SEATBACK WHT / BLK CAP 2 $59.76 Each
1 101565105 101565105 - SEATBACK ASM BUFF / BLK CAP 2 $59.76 Each
2 1013335 1013335 - CAP- SEATBACK_BLACK 2 $12.73 Each
3 101562601 101562601 - VINYL COVER SEAT BACK-BUFF SVC   2 Each
3 101562612 101562612 - VINYL COVER SEAT BACK-WHT SVC 2 $25.08 Each
4 8935 8935 - SCREW- 5/16-18 X 2.25 HX HD CP 2 $1.08 Each
5 1015075 1015075 - WASHER- 5/16 FLAT TYPE A 4 $0.66 Each
7 1017409 1017409 - MOUNT- SEAT BACK 2 $6.96 Each
8 1011708 1011708 - MAIN SEAT BACK SUPPORT 2 $27.72 Each
9 1013884 1013884 - SPACER- BAG HOOP 2 $2.04 Each
10 1013935 1013935 - BAG HOOP W/BUCKLE & STRAP ASM 1 $60.48 Each
11 1010434 1010434 - BARREL - PLASTIC 2 $0.34 Each
12 1013754 1013754 - BUCKLE- BAG STRAP 2 $4.09 Each
13 1010413 1010413 - BAG STRAP ASSEMBLY 1 $10.20 Each
14 1017234 1017234 - BARREL FASTENER - GREY 4 $0.44 Each
15 1011710 1011710 - KNEE BRACE WELD ASSY 2 $43.92 Each
16 1011706 1011706 - SEAT BACK SUPPORT MTG PAD 2 $2.40 Each
19 8233 8233 - LOCKNUT- 1/4-20 NYLON INSERT 6 $0.36 Each
20 7847 7847 - SCREW- 1/4-20 X .75 HEX HD CAP 6 $0.30 Each
21 332 332 - WASHER- 1/4 TYPE A NARROW FLAT 8 $0.24 Each
22 1218 1218 - SCREW- 5/16-18 X 1.25 HX HD CP 4 $0.50 Each
23 1017774 1017774 - BODY SPACER 4 $0.95 Each
24 1241 1241 - WASHER- 5/16 TYPE A FLAT 6 $0.24 Each
25 7818 7818 - BOLT- 5/16-18 X 1.5 RD HD SQ N 2 $1.14 Each
