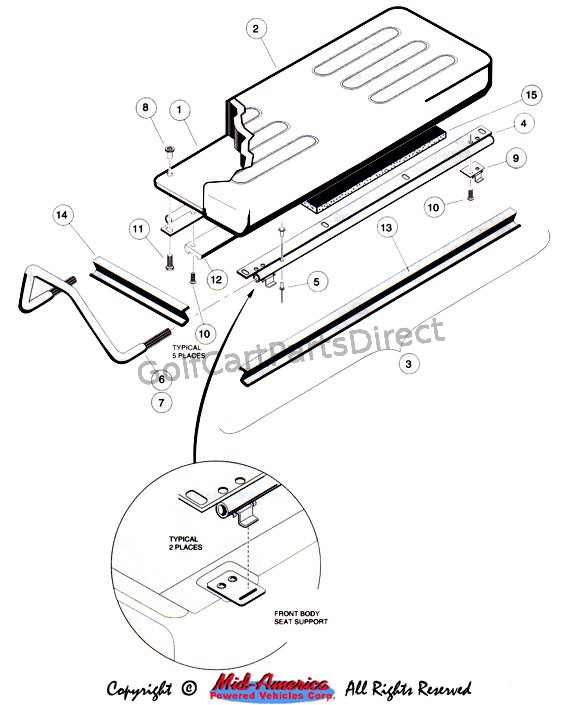

Seat Bottom and Armrest
ID Part No. Description Quantity Req Our Price
1 101564804 101564804 - SEAT BOT ASM / BUFF 1 $145.08 Each
1 101564805 101564805 - SEAT BTM ASM-WHITE SVC PARTS 1 $145.44 Each
2 101562701 101562701 - VINYL COVER ST BTM BUFF SVC 1 $51.84 Each
2 101562702 101562702 - VINYL COVER ST BTM WHITE SVC 1 $51.84 Each
3 1015670 1015670 - ARMREST ST BTM ASM KIT STD CAR 1 $180.24 Each
4 1015625 1015625 - BRACKET - SEAT SUPPORT 2 $16.68 Each
5 101880901 101880901 - RIVET- 3/16 SS POP 4 $1.39 Each
6 101951101 101951101 - ARMREST KIT 1 $80.76 Each
7 101951101 101951101 - ARMREST KIT 1 $80.76 Each
9 1011652 1011652 - HINGE PLATE 2 $4.38 Each
10 1017384 1017384 - SCREW- #12 X .50 TYP AB HX WSH 9 $0.31 Each
11 304 304 - SCREW- 1/4-20 X 1.0 HEX HD CAP 8 $0.42 Each
12 1012597 1012597 - SEAT BUMPER 1 $15.00 Each
13 1012657 1012657 - SEAT GASKET-LONG 1 $33.14 Each
14 1012656 1012656 - SEAT GASKET-SHORT 2 $11.22 Each
