Electrical Components - Rear Body - 48V

Menu: Store Home | Advanced Search | Shopping Cart | Checkout

Location: Store Home > Engine - Part 3 > Battery – Gasoline Vehicle > Carburetor - FE290 > Governor and Intake Hose > Front Body > Motor - 36V > Engine - Part 6 > Seat Back and Bag Hoop > Front Brake Assy. > For. and Rev. Switch - 48V > Dashboard > Rear Body - Electric > Wiring - 36 Volt > FE 290 Engine V > Engine - FE290 Part 1 > Reverse Buzzer 2 > Electrical Components - Rear Body - 48V

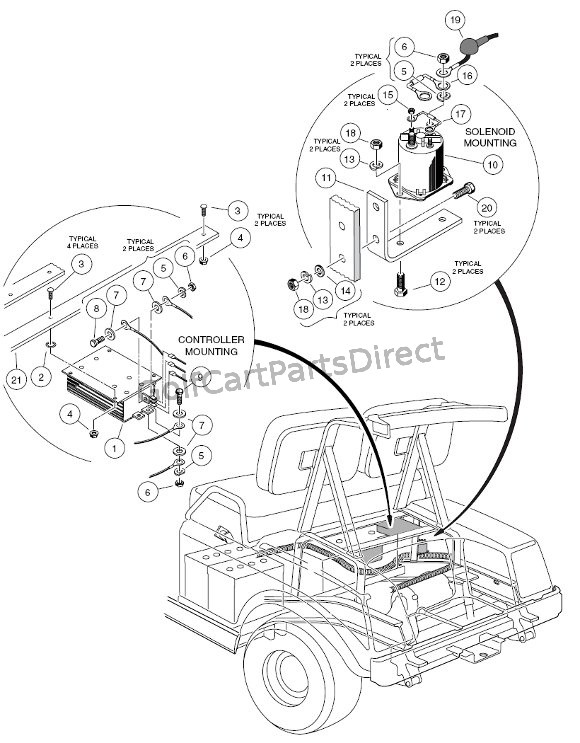

Electrical Components - Rear Body - 48V
ID Part No. Description Quantity Req Our Price
1 101840201 101840201 - CONTROLLER- 48V 225A SERIES 1 $665.64 Each
2 1016631 1016631 - PUSH NUT .187 4 $0.31 Each
3 1017203 1017203 - BOLT- 1/4-20 X 1.0 RD HD SQ NK 6 $0.31 Each
4 101835601 101835601 - LOCKNUT- 1/4-20 HEX WHIZ 6 $0.42 Each
5 7174 7174 - LOCKWASHER- 5/16 SPLIT 5 $0.24 Each
6 1242 1242 - NUT- 5/16-18 HEX 5 $0.30 Each
7 1241 1241 - WASHER- 5/16 TYPE A FLAT 6 $0.24 Each
8 7173 7173 - SCREW- 5/16-18 X .75 HX HD CAP 2 $0.36 Each
9 1218 1218 - SCREW- 5/16-18 X 1.25 HX HD CP 1 $0.50 Each
10 101908701 101908701 - SOLENOID, 48V W/CONTACT STUD H 1 $50.28 Each
11 1015838 1015838 - SOLENOID MTG BRKT CONTROLLER 1 $7.56 Each
12 7847 7847 - SCREW- 1/4-20 X .75 HEX HD CAP 2 $0.30 Each
13 451 451 - LOCKWASHER- 1/4 SPLIT 4 $0.24 Each
14 332 332 - WASHER- 1/4 TYPE A NARROW FLAT 2 $0.24 Each
15 7893 7893 - NUT- #10-32 HEX 2 $0.30 Each
16 1014947 1014947 - RESISTOR ASM 1 $6.30 Each
17 1014948 1014948 - ASM- DIODE 1 $5.40 Each
18 1028 1028 - NUT- 1/4-20 HEX 4 $0.30 Each
19 101902601 101902601 - WIRE BOOT 1 $1.68 Each
20 304 304 - SCREW- 1/4-20 X 1.0 HEX HD CAP 2 $0.42 Each
