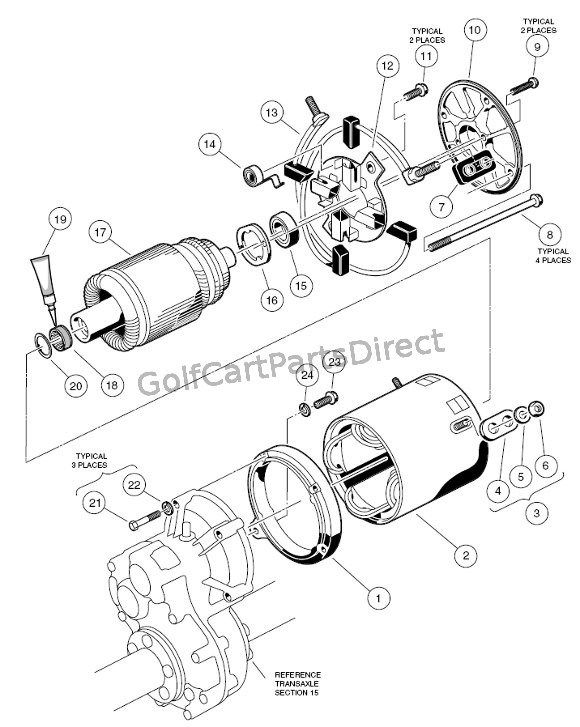

Motor - 48V

Menu: Store Home | Advanced Search | Shopping Cart | Checkout

Location: Store Home > Engine - Part 3 > Battery – Gasoline Vehicle > Carburetor - FE290 > Governor and Intake Hose > Front Body > Motor - 36V > Engine - Part 6 > Seat Back and Bag Hoop > Front Brake Assy. > For. and Rev. Switch - 48V > Dashboard > Rear Body - Electric > Wiring - 36 Volt > FE 290 Engine V > Engine - FE290 Part 1 > Reverse Buzzer 2 > Electrical Components - Rear Body - 48V > Fuel System > Forward/Reverse Switch - 48V > Choke - Carryall VI > Seat Bottom and Armrest > PM Kit > Ball & Club Cleaner > Underseat Storage Tray > Forward/Reverse & Tow/Run Switch > Footrest - Rear Seat > Brake Assembly > Electrical Box - Gas > Governor & Accelerator Cables > Windshield > Power Wiring - 48V > Front Suspension - Lower > Energy Displacement Module Powerdrive Plus > Floormat, Retainer, and Front Underbody - Style B > Exhaust System - FE 290 > Front Suspension - Upper > Extra Bag Attachment > Access Door and Side Doors > Electrical Components - Front Body - Electric > Transmission - Part 1 > On-Board Computer - Powerdrive Plus > Accelerator Pedal - Elec. 48v > Safety Decals - Gas > Engine - Part 4 > Gov. and Accel. Cables > Rear Susp. Electric > Safety Decals - Electric > Carb. Assy. - FE 290 > Charger - Powerdrive 3 > Wiring, Gasoline Vehicle II > 4-Wheel Braking > FE 350 Engine IV > Kick PLate - Electric > Engine - FE290 Part 2 > 4-Wheel Braking Susp. > Steering Column > Engine - FE290 Part 5 > Club Car DS Body Kits > Driven Clutch > Stereo Console > Shifter Assembly > Club Protector > Seat Back & Bag Hoop > Rear Susp. - Gas > Controls and Gauges > Steering Gear Assembly > Electrical Components Box – Gas > FE 290 Engine IV > FE 290 Engine I > Governor and Acc. Cables > Close Out Items - SALE !! > Car Cover > Wiper Switch - 36V V-Glide > Engine - FE350 Part 4 > Carburetor Assembly > Engine - FE290 Part 6 > Elec. Comp. Center Body II > Engine Mounting > Power Wiring - 36V V-glide > Charger - 36V > Canopy > Engine - FE350 Part 2 > Resis. and Board Assy 36V > Motor - 48V

ID	Part No.	Description	Quantity	Req	Our Price
0	102237701	102237701 - MOTOR- 48V SERIES 3.10 HP	Quantity	1	$958.80 Each
1	1017944	1017944 - END SHIELD	Quantity	1	$136.80 Each
2	1017958	1017958 - STATOR SHL/WINDING 48V 3.15HP	Quantity	1	$817.80 Each
3	1017947	1017947 - HARDWARE PACKAGE	Quantity	1	$33.72 Each
8	1017961	1017961 - CLAMP SCREW	Quantity	4	$14.28 Each
9	1017953	1017953 - RETAINER- SCREW BEARING	Quantity	2	$4.92 Each
10	1017951	1017951 - END SHIELD	Quantity	1	$181.08 Each
11	1017949	1017949 - SCREW- #6-32 X .480 HEX HEAD	Quantity	2	$3.72 Each
12	1017948	1017948 - BRUSH RIGGING	Quantity	1	$132.80 Each
13	1017946	1017946 - BRUSH PACKAGE	Quantity	1	$138.00 Each
14	1011411	1011411 - KIT- BRUSH SPRING (GE MOTOR)	Quantity	1	$24.96 Each
15	1011290	1011290 - BALL BEARING	Quantity	1	$4.32 Each
16	1017950	1017950 - BEARING RETAINER	Quantity	1	$20.16 Each
18	101789101	101789101 - GUIDE RING	Quantity	1	$4.56 Each
19	101813202	101813202 - GUIDE RING ADHESIVE 3 GRAMS	Quantity	0	$15.80 Each
20	101822801	101822801 - INT. STRAIGHT RETAINING RING	Quantity	1	$0.76 Each
21	1014201	1014201 - SCREW- 1/4-20 X 2.25 HEX CAP	Quantity	3	$0.50 Each
22	451	451 - LOCKWASHER- 1/4 SPLIT	Quantity	3	$0.24 Each
23	1010934	1010934 - SCREW- 5/16-18 X 1.00 HEX CAP	Quantity	1	$0.38 Each
24	7174	7174 - LOCKWASHER- 5/16 SPLIT	Quantity	1	$0.24 Each
