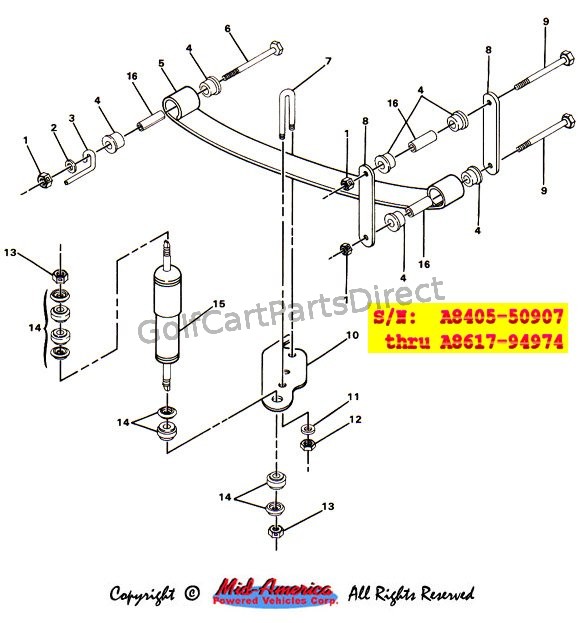

Rear Suspension - Part 1

Menu: Store Home | Advanced Search | Shopping Cart | Checkout

Location: Store Home > Brake Pedal > Final Assem. - Part 2 > Final Assy. - Part 2 > Seat Bottom and Armrest > Charger - 36V > Wheel Covers > Accel Pedal Assy Elec. > Light Kit > Windshield > Rake Holder > Permanent Type Towing > Engine - Part 3 > Muffler Assembly > Steering Assy. - Part 1 > Engine - Part 2 > Driven Clutch - Part 1 > Muffler Assy. - Part 2 > Fuel System - Part 4 > Trailer Hitch > Final Assy. - Part 1 > Motor Assy. - Part 1 > Fuel System - Part 1 > Rear Suspension - Part 2 > Brake Assembly > Drive Clutch - Part 2 > Front Suspension Assy. > Electrical Comp - 36V > Rear Suspension - Part 1

Rear Suspension - Part 1
ID Part No. Description Quantity Req Our Price
1 1010138 1010138 - 3/8-16 DIMPLED LOCK NUT 6 $0.30 Each
2 334 334 - WASHER- 3/8 TYPE A FLAT 2 $0.30 Each
4 1015583 1015583 - BUSHING- URETHANE 12 $1.30 Each
5 103629001 103629001 - SPRING ASM, REAR, DS 2 $49.08 Each
6 7228 7228 - SCREW- 3/8-16 X 3.75 HX HD CAP 2 $2.40 Each
7 1012180 1012180 - U-BOLT 2 $1.80 Each
8 7569 7569 - SHACKLE PLATE 4 INCH 4 $4.92 Each
9 8755 8755 - SCREW- 3/8-16 X 3.375 HEX CAP 4 $1.56 Each
10 1012181 1012181 - BRACKET- SHOCK MOUNTING -RH 1 $11.52 Each
10 1012182 1012182 - BRACKET- SHOCK MOUNTING -LH 1 $11.04 Each
11 720 720 - LOCKWASHER- 7/16 SPLIT 4 $0.38 Each
13 1010145 1010145 - NUT- 3/8-24 HEX 4 $0.30 Each
14 1011415 1011415 - SHOCK ABSORBER CUSHION KIT 4 $4.92 Each
15 102588501 102588501 - SHOCK ABSORBER REAR PRV SPD 2 $30.96 Each
16 1012303 1012303 - BUSHING - STEEL 6 $1.18 Each
