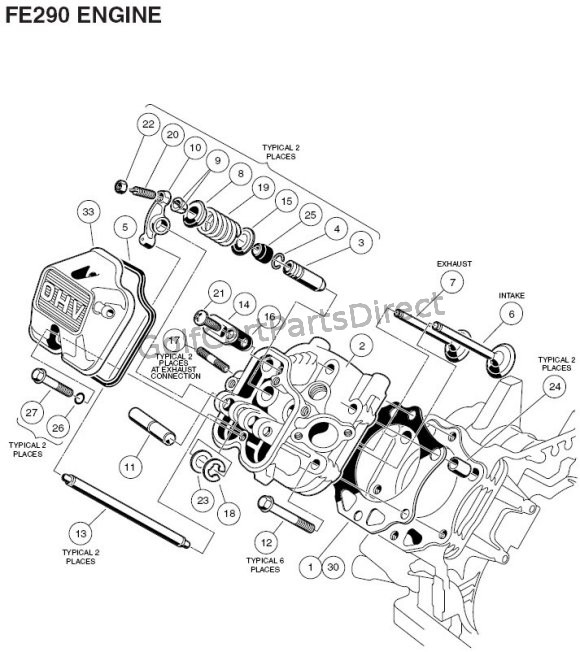

Engine - FE290 Part 4
ID Part No. Description Quantity Req Our Price
1 1016430 1016430 - GASKET- FE290 HEAD 1 $14.52 Each
2 1016431 1016431 - HEAD ASSY- FE290 CYLINDER 1 $367.20 Each
3 1016519 1016519 - GUIDE- VALVE- INTAKE- EXHAUST 2 $22.20 Each
4 1016560 1016560 - SNAP RING 2 $0.36 Each
5 1016436 1016436 - GASKET- ROCKER CASE 1 $9.36 Each
6 1016447 1016447 - VALVE - INTAKE 1 $19.08 Each
7 1016448 1016448 - VALVE - EXHAUST 1 $30.72 Each
8 1016449 1016449 - RETAINER - VALVE SPRING 2 $5.40 Each
9 1016450 1016450 - COLLET 4 $0.96 Each
10 1016451 1016451 - ARM - ROCKER 2 $30.60 Each
11 1016452 1016452 - SHAFT - ROCKER 1 $6.48 Each
12 1016458 1016458 - BOLT- FLANGED 6 $1.56 Each
13 1016471 1016471 - ROD- PUSH 2 $20.40 Each
14 1016474 1016474 - PLATE 1 $1.20 Each
15 1016479 1016479 - SEAT- SPRING 2 $0.72 Each
16 1016483 1016483 - VALVE 1 $5.68 Each
17 1016489 1016489 - STUD- M8-1.25 2-ENDED 2 $1.80 Each
18 1016517 1016517 - CIRCLIP - TYPE -E 1 $0.48 Each
19 1016523 1016523 - SPRING- ENGINE VALVE 2 $4.44 Each
20 1016542 1016542 - SCREW 2 $2.16 Each
21 1016544 1016544 - SCREW 1 $0.36 Each
22 1016545 1016545 - NUT 2 $0.60 Each
23 1016549 1016549 - WASHER- 12.1X19X1.8 1 $0.60 Each
24 1016563 1016563 - PIN 2 $0.84 Each
25 1016566 1016566 - SEAL- OIL 2 $6.36 Each
26 1016569 1016569 - O-RING 2 $0.72 Each
27 1016583 1016583 - BOLT- 6X35 2 $0.60 Each
28 102304701 102304701 - GASKET KIT- FE290 1 $28.68 Each
29 1015330 1015330 - GASKET- OHV EXHAUST 1 $4.80 Each
30 1016430 1016430 - GASKET- FE290 HEAD 1 $14.52 Each
31 1016440 1016440 - GASKET- ENGINE TO INSULATOR 1 $1.68 Each
32 1016446 1016446 - GASKET- CRANKCASE COVER 1 $10.92 Each
33 102753401 102753401 - CASE- ROCKER -W/O LOGO FE290 1 $44.52 Each
