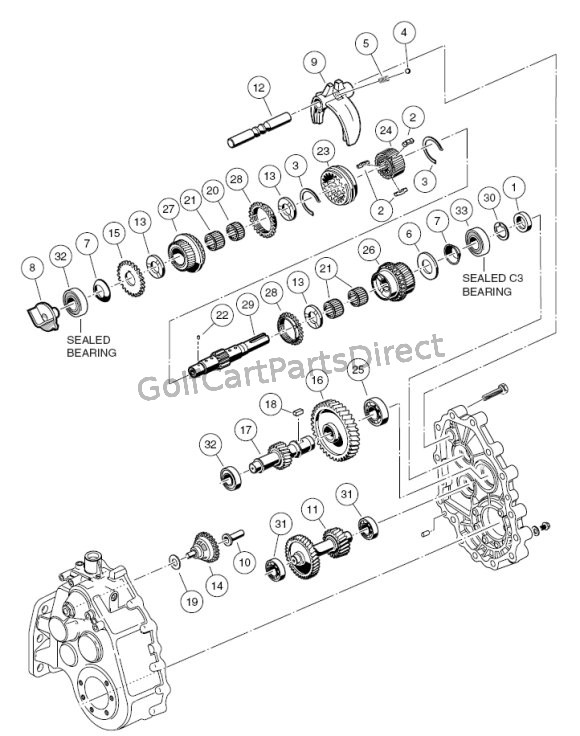

Unintized Transaxle - F&R Transmission Gear Reduction

ID	Part No.	Description	Quantity	Req	Our Price
1	1012714	1012714 - OIL SEAL	Quantity	1	$8.76 Each
2	1012740	1012740 - SYNCHRO INSERT	Quantity	3	$2.40 Each
3	1012741	1012741 - SYNCHRO SPRING	Quantity	2	$1.32 Each
4	1012747	1012747 - SHIFTER BALL	Quantity	1	Each
5	1012748	1012748 - SHIFTER SPRING	Quantity	0	$1.20 Each
5	1012748	1012748 - SHIFTER SPRING	Quantity	1	$1.20 Each
6	1016337	1016337 - THRUST WASHER	Quantity	1	$11.40 Each
7	1016338	1016338 - SPRING WASHER	Quantity	2	$8.28 Each
8	101889401	101889401 - GUIDE	Quantity	1	$7.56 Each
9	101890001	101890001 - FORK - SHIFT	Quantity	1	$172.08 Each
10	101891601	101891601 - SLEEVE - GOVERNOR	Quantity	1	$3.24 Each
11	101891901	101891901 - GEAR - CLUSTER	Quantity	1	$176.88 Each
12	101892001	101892001 - ROD - SHIFT	Quantity	1	$41.88 Each
13	101892201	101892201 - PLATE - THRUST	Quantity	3	$8.76 Each
14	101892301	101892301 - GOVERNOR ASSEMBLY	Quantity	1	$14.88 Each
15	101892401	101892401 - GEAR SPUR	Quantity	1	$26.64 Each
16	101892501	101892501 - GEAR HELICAL	Quantity	1	$260.28 Each
17	101892601	101892601 - GEAR HELICAL	Quantity	1	$70.68 Each
18	101893201	101893201 - KEY SUNK	Quantity	1	$7.68 Each
19	101893901	101893901 - WASHER	Quantity	1	$0.96 Each
20	101927501	101927501 - NEEDLE BEARING	Quantity	1	$17.04 Each
21	101927601	101927601 - NEEDLE BEARING	Quantity	3	$16.56 Each
22	101927701	101927701 - PIN- .116 INCH DIA X .264 DOWEL	Quantity	1	$0.24 Each
23	101927901	101927901 - SLEEVE- SYNCHRO	Quantity	1	$61.44 Each
24	101928001	101928001 - HUB- SYNCHRO CLUTCH	Quantity	1	$62.64 Each
25	101928101	101928101 - BEARING- BALL	Quantity	1	$22.68 Each
26	101980801	101980801 - GEAR ASSY- 16 DEG FRT SYNCHRO	Quantity	1	$121.80 Each
27	101980901	101980901 - GEAR ASSY- 16 DEG REAR SYNCHRO	Quantity	1	$80.14 Each
28	101981001	101981001 - RING- 16 DEGREE SYNCHRONIZER	Quantity	2	$37.80 Each
29	102453001	102453001 - SHAFT- TRANS- W/CIRCLIP	Quantity	1	$200.88 Each
30	102453101	102453101 - CIRCLIP- TRANS INPUT SHAFT	Quantity	1	$2.04 Each
31	7335	7335 - BEARING	Quantity	2	$7.80 Each
32	AM10080	AM10080 - SEALED BALL BEARING(7336)	Quantity	2	$16.63 Each
33	AM10081	AM10081 - SEALED BALL BEARING(101927801)	Quantity	1	$21.42 Each
