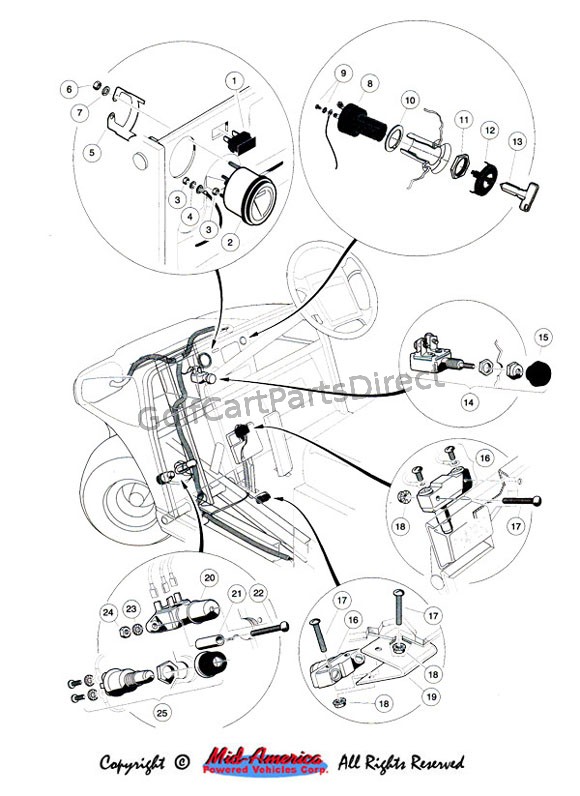

Controls and Gauges
ID Part No. Description Quantity Req Our Price
1 1016630 1016630 - LIGHT- OIL 1 $7.06 Each
2 1015103 1015103 - FUEL GAUGE W/#6 STUDS 1 $78.48 Each
5 1015104 1015104 - BRACKET- FUEL GUAGE 1 $6.11 Each
6 1011571 1011571 - NUT- #8-32 HEX 2 $0.31 Each
7 1011610 1011610 - LOCKWASHER- #8 SPLIT SS 2 $0.30 Each
8 101826401 101826401 - KEYSWITCH- 12V ON/OFF/START 1 $32.14 Each
9 101830601 101830601 - SCREW & WASHER ASM - SEMS 5 $0.36 Each
10 101851101 101851101 - WASHER- KEY SWITCH 1 $1.08 Each
11 101830701 101830701 - NUT- KEYSWITCH 1 $0.96 Each
12 101834502 101834502 - CAP- BLACK KEY SWITCH 1 $1.56 Each
13 AM10079 AM10079 - BULK STD KEYS (50) 1 $1.66 Each
14 4034 4034 - LIGHT SWITCH 1 $26.52 Each
15 1013757 1013757 - GEAR CASE L.H. 1 $222.72 Each
16 1011439 1011439 - MICRO SWITCH- #730 2 $13.68 Each
17 1011557 1011557 - SCREW- #6-32 X 1.00 HX MACHINE 6 $0.30 Each
18 1011229 1011229 - LOCKNUT- #6-32 WHIZ 6 $0.30 Each
20 1010889 1010889 - SWITCH DIMMER 1 $12.30 Each
21 101871301 101871301 - STANDOFF DIMMER SWITCH 2 $0.38 Each
22 101871201 101871201 - SCREW- #10-32 X 1.00 RD HD MCH 2 $0.31 Each
23 8049 8049 - LOCKWASHER- #10 INTERNAL TOOTH 2 $0.30 Each
24 7893 7893 - NUT- #10-32 HEX 2 $0.30 Each
25 1013443 1013443 - HORN BUTTON W/BOOT 1 $22.68 Each
