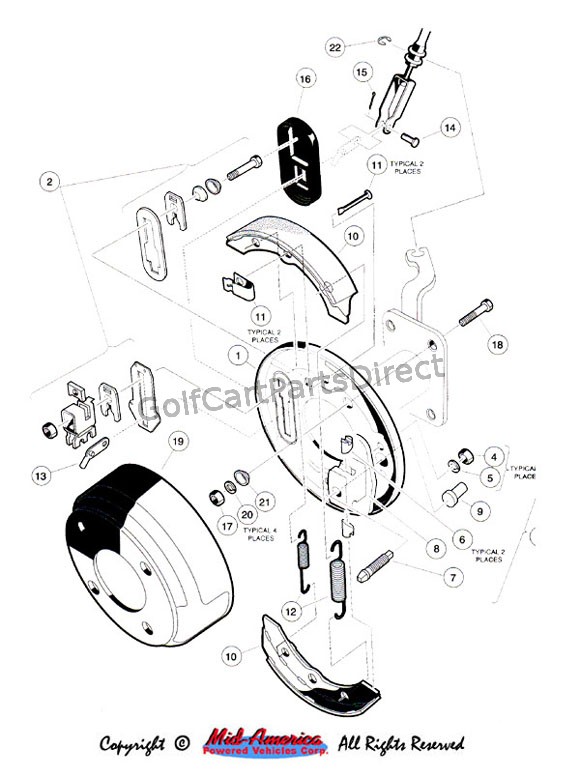

Front Brake Assy.
ID Part No. Description Quantity Req Our Price
0 1016557 1016557 - ASM BRAKE CLUSTER LH MANUAL 1 $126.72 Each
0 1016573 1016573 - ASM BRAKE CLUSTER RH MANUAL 1 $126.72 Each
2 1011465 1011465 - BRAKE ACTUATOR KIT 1 $99.60 Each
3 1011467 1011467 - KIT- ANCHOR BODY (BRAKE) 1 $55.56 Each
4 1011114 1011114 - NUT- M6-1.00 HEX 2 $0.30 Each
5 451 451 - LOCKWASHER- 1/4 SPLIT 2 $0.24 Each
9 1011303 1011303 - ADJUSTMENT BOLT CAP 1 $7.56 Each
10 101146302 101146302 - SHOE KIT- NON-ASBESTOS BRAKE 1 $62.40 Each
11 1011466 1011466 - KIT- SHOE RETAINER 1 $24.84 Each
12 1011464 1011464 - PACKAGE- BRAKE SPRING 1 $25.08 Each
14 1010850 1010850 - DUST COVER 1 $10.56 Each
15 1010829 1010829 - CLEVIS PIN- 5/16 X 3/4 2 $0.36 Each
16 1035 1035 - 3/32 X 1.000 COTTER PIN 2 $0.30 Each
17 101872701 101872701 - NUT- 5/16-24 GR 8 HEX 8 $0.31 Each
18 1017232 1017232 - SCREW- 5/16-24 X 1.00 HEX CAP 8 $0.95 Each
19 1011137 1011137 - BRAKE DRUM 2 $47.64 Each
20 7174 7174 - LOCKWASHER- 5/16 SPLIT 8 $0.24 Each
21 101869001 101869001 - WASHER- 5/16 CONE 8 $5.76 Each
22 1011779 1011779 - E-CLIP- 1/2 2 $0.30 Each
