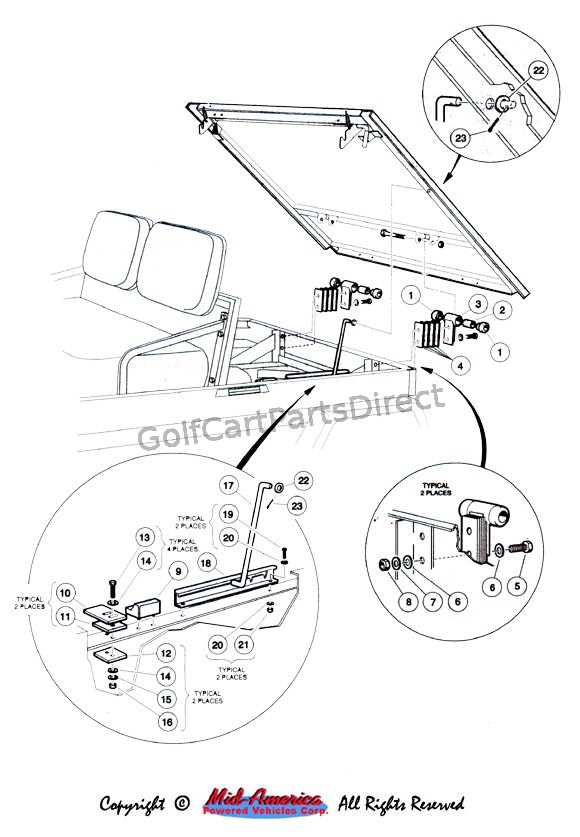

Tilt Bed Hinge and Prop Rod
ID Part No. Description Quantity Req Our Price
1 1015583 1015583 - BUSHING- URETHANE 4 $1.30 Each
2 1012303 1012303 - BUSHING - STEEL 2 $1.18 Each
3 1015356 1015356 - ASM- HINGE -TILT BED 2 $21.17 Each
4 1015507 1015507 - SHIM TILT BED PIVOT 0 $3.84 Each
5 8861 8861 - 3/8 - 16 X 1.75 HEX CAP SCREW 4 $0.78 Each
6 1011990 1011990 - WASHER- 3/8 FLAT 8 $0.30 Each
7 357 357 - LOCKWASHER- 3/8 SPLIT 4 $0.30 Each
8 706 706 - NUT- HEX 3/8-16 4 $0.30 Each
10 1015277 1015277 - LATCH PLATE TILT BED CARRYALL 2 $11.88 Each
11 1016078 1016078 - LATCH PLATE SHIM 0 $3.36 Each
12 1016060 1016060 - PLATE- LATCH SUPPORT 2 $4.56 Each
13 304 304 - SCREW- 1/4-20 X 1.0 HEX HD CAP 4 $0.42 Each
14 332 332 - WASHER- 1/4 TYPE A NARROW FLAT 8 $0.24 Each
15 451 451 - LOCKWASHER- 1/4 SPLIT 4 $0.24 Each
16 1028 1028 - NUT- 1/4-20 HEX 4 $0.30 Each
19 7847 7847 - SCREW- 1/4-20 X .75 HEX HD CAP 2 $0.30 Each
20 332 332 - WASHER- 1/4 TYPE A NARROW FLAT 4 $0.24 Each
21 8233 8233 - LOCKNUT- 1/4-20 NYLON INSERT 2 $0.36 Each
22 334 334 - WASHER- 3/8 TYPE A FLAT 1 $0.30 Each
23 1035 1035 - 3/32 X 1.000 COTTER PIN 1 $0.30 Each
