| ID |
Part No. |
Description |
Quantity |
Req |
Our Price |
| 0 |
101827601 |

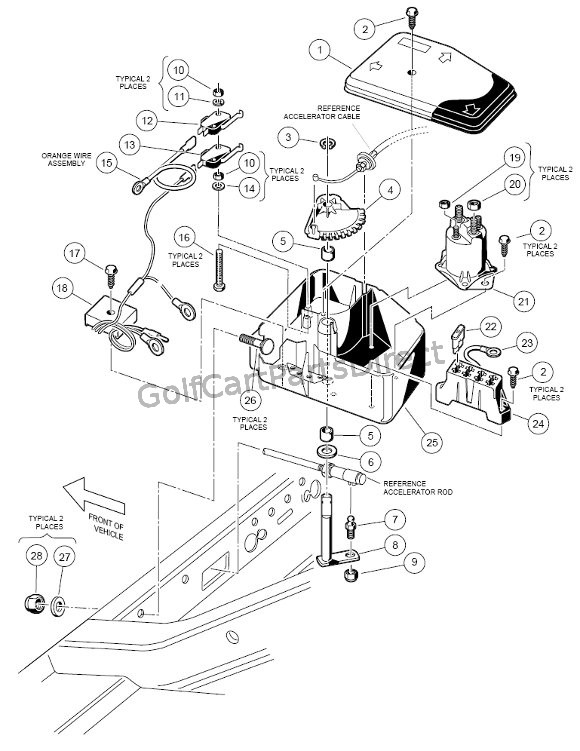

101827601 - ELEC COMPONENT BOX ASM - DS |
|
1 |
$329.28
Each |
| 1 |
1015372 |
1015372 - COVER- OHV ELECTRIC BOX |
|
1 |
$7.56
Each |
| 2 |
1015752 |
1015752 - SCREW- #12-16 X .625 HI-LO |
|
5 |
$0.48
Each |
| 3 |
1013589 |
1013589 - RING- .338 INCH INTERNAL RETAINING |
|
1 |
$0.31
Each |
| 4 |
1015373 |
1015373 - CAM- ELECTRIC BOX |
|
1 |
$2.76
Each |
| 5 |
1014145 |
1014145 - BUSHING- SECONDARY WGHT SPLIT |
|
2 |
$1.08
Each |
| 6 |
1014065 |
1014065 - WASHER- .38 INCH ID DELRIN FLAT |
|
1 |
$0.31
Each |
| 7 |
1010954 |
1010954 - STUD- 1/4-28 X .560 BALL |
|
1 |
$2.34
Each |
| 8 |
101821301 |
101821301 - BELL CRANK WELD ASM |
|
1 |
$11.40
Each |
| 9 |
8717 |
8717 - LOCKNUT- 1/4-28 NYLON INSERT |
|
1 |
$0.30
Each |
| 10 |
8057 |
8057 - NUT- #4-40 HEX MACHINE |
|
4 |
$0.30
Each |
| 11 |
8058 |
8058 - LOCKWASHER- #4 SPLIT |
|
2 |
$0.24
Each |
| 12 |
1014807 |
1014807 - SWITCH- LIMIT |
|
1 |
$3.00
Each |
| 13 |
1014808 |
1014808 - SWITCH- LIMIT |
|
1 |
$3.00
Each |
| 14 |
1012431 |
1012431 - WASHER- #4 FLAT |
|
2 |
$0.31
Each |
| 16 |
1015878 |
1015878 - SCREW- #4-40 HEX HEAD MACHINE |
|
2 |
$0.70
Each |
| 17 |
101856102 |
101856102 - SCREW- 1/4-15 X 1.50 HI-LO HEX |
|
1 |
$1.14
Each |
| 18 |
102711201 |
102711201 - ASM, VOLTAGE REGULATOR |
|
1 |
$34.68
Each |
| 19 |
7893 |
7893 - NUT- #10-32 HEX |
|
2 |
$0.30
Each |
| 20 |
1242 |
1242 - NUT- 5/16-18 HEX |
|
2 |
$0.30
Each |
| 21 |
1013609 |
1013609 - SOLENOID- 12 VOLT |
|
1 |
$27.00
Each |
| 22 |
1012295 |
1012295 - 10 AMP FUSE |
|
1 |
$1.26
Each |
| 23 |
1015737 |
1015737 - WIRE ASSY- #10 RED |
|
1 |
$4.54
Each |
| 24 |
1015741 |
1015741 - FUSE BLOCK |
|
1 |
$2.88
Each |
| 25 |
1015371 |
1015371 - BOX- ELECTRICAL COMPONENT |
|
1 |
$16.92
Each |
| 26 |
1015405 |
1015405 - 5/16-18 X 2.0 RD HD SQ NK BOLT |
|
1 |
$1.01
Each |
| 27 |
1241 |
1241 - WASHER- 5/16 TYPE A FLAT |
|
2 |
$0.24
Each |
| 28 |
7473 |
7473 - LOCKNUT- 5/16-18 NYLON HEX |
|
2 |
$0.24
Each |
