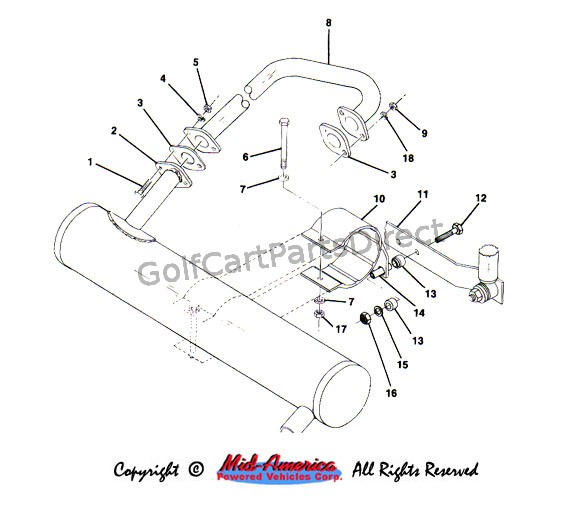

Muffler Assembly
ID Part No. Description Quantity Req Our Price
1 1010934 1010934 - SCREW- 5/16-18 X 1.00 HEX CAP 2 $0.38 Each
3 1012510 1012510 - EXHAUST GASKET 1 $4.80 Each
4 7174 7174 - LOCKWASHER- 5/16 SPLIT 2 $0.24 Each
5 1242 1242 - NUT- 5/16-18 HEX 2 $0.30 Each
6 1012462 1012462 - BOLT- 1/4-20 X 3.50 HEX HEAD 1 $0.84 Each
7 332 332 - WASHER- 1/4 TYPE A NARROW FLAT 2 $0.24 Each
8 1012314 1012314 - EXHAUST HEADER 1 $96.72 Each
9 1012528 1012528 - NUT- M8-1.25 HEX 2 $0.30 Each
11 1012460 1012460 - MUFFLER SUPPORT BAR 1 $20.14 Each
12 1010177 1010177 - BOLT- 3/8-16 X 2.00 HEX HEAD 2 $1.76 Each
13 1016810 1016810 - ENGINE MOUNT 4 $8.76 Each
14 1017033 1017033 - SPACER- 1.19 INCH 2 $4.54 Each
15 808 808 - WASHER- 3/8 TYPE B FLAT 2 $0.48 Each
16 8754 8754 - LOCKNUT- 3/8-16 HEX 2 $0.36 Each
17 1108 1108 - LOCKNUT- 1/4-20 DIMPLED 1 $0.30 Each
18 1013734 1013734 - LOCKWASHER- 8MM SPLIT 2 $0.30 Each
